ELM327 OBD2 Engine Code Scanner Bluetooth Diagnostic Scan Tool Car Fault Code Reader IOS IPad









  Imagine ...  You're driving home from work one day when the car owner's worst nightmare happens: the check engine light pops on. It comes without warning and with no explanation. For most drivers, this means a trip to the mechanic and Heading for costly repairs. ...



Here’s the good news...



OBD2 Scanner

  The ELM327 OBD2 Diagnostic Scan Tool Car Fault Code Reader, Will give you the information that you need to fix your car.

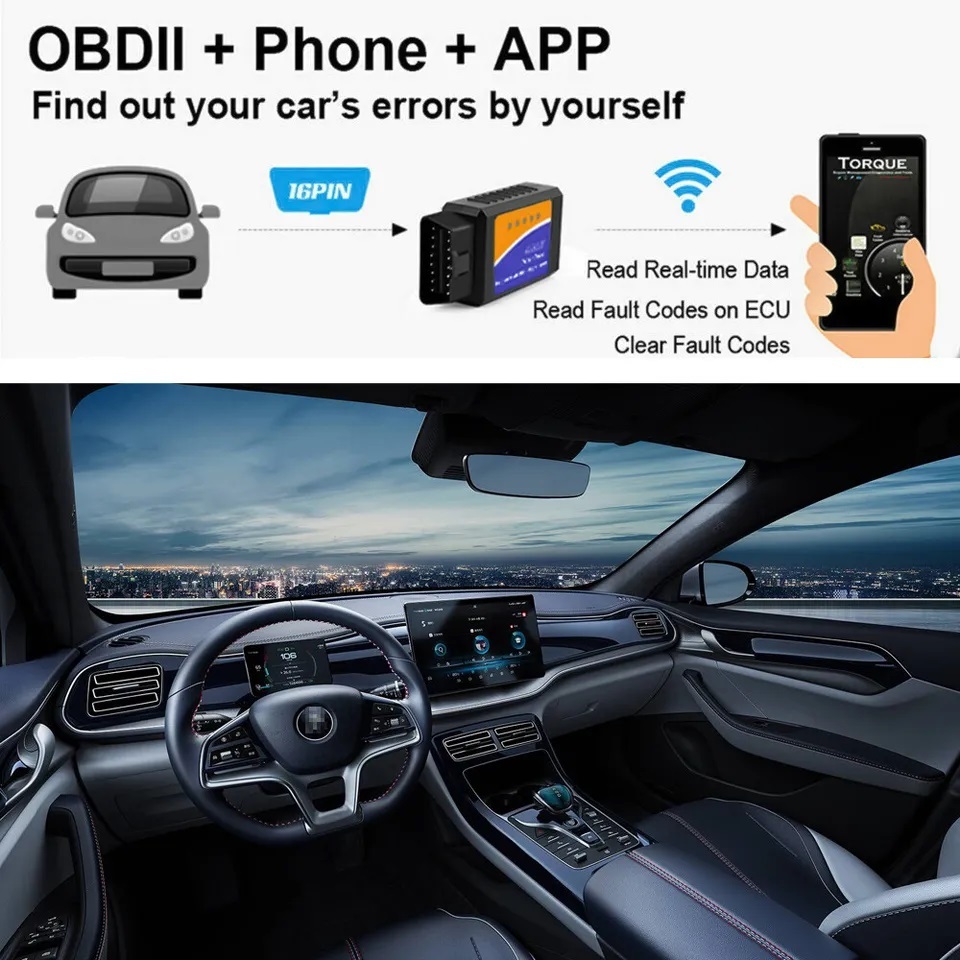

It allows you to wirelessly connect your car's on-board computer from your any Wi-Fi enabled device with the compatible application or software. The WiFi connectivity makes it compatible with BOTH Apple iOS (iPhone®, iPad®, iPod® Touch) and also Android devices!

 ✓ Genuine 25K80 Chip

 ✓ 2 Year Warranty .





This On-Board Diagnostic 2 (OBD2) scanner can be used to diagnose and troubleshoot issues with a vehicle’s engine and other systems.

To be more specific, this OBD2 scanners can:



• Diagnose engine problems When the “Check Engine” light comes on
• Read the codes stored in the engine control module (ECM) or powertrain control module (PCM) to determine the source of the problem.
• Monitor emissions OBD2 scanners can also monitor a vehicle’s emissions system.
• Reset fault codes After you fix a problem, an OBD2 scanner can clear the fault codes stored in the ECM or PCM. This will turn off the “Check Engine” light
• Monitor a vehicle’s fuel efficiency by tracking data such as the air/fuel ratio, engine speed, and throttle position.

This information can be used to diagnose issues that may be reducing the vehicle’s fuel efficiency. OBD2 scanners are essential tools for both mechanics and car owners. They provide information about a vehicle’s health and can help prevent repairs down the road – saving you valuable time and dollars along the way.









How it works:

Sensors are connected to major components which constantly send data to the computer which then adjusts performance accordingly to ensure minimal emissions and optimal performance.

Reading data from these computers helps mechanics pinpoint where problems may lie in car performance.

You can also find out this information with this OBD2 bluetooth engine code reader. It connects to your OBD2 port and will immediately intepret the information in the ECU (enging control unit).

You can use this information to find faulty sensors which adversely affect performance, see if cylinders are misfiring, see how hot your engine coolant is, view engine RPMs and much more.
Diagnosing and fixing certain problems yourself can save a lot of time and money. It's also fascinating to see how much engine information is readily available in modern cars.



Specific parameters can be selected via the connection settings to enter your vehicles.

Further more you can target a specific sensor Ex:" Transmission Temperature " by using PID setting.







So in my opinion ...  Having a Scanner OBD2 Diagnostic Scan Tool to back up your equipment at anytime is paramount.



  Far more than your average scanner, this unit is a complete professional tool with the Torque Pro App you will be able to perform powerful and comprehensive health and performance checks on your car.



  It will show you in precise details what's going on inside different systems of your car and has an impressive set of features like :

  - Live information.

  - Graphical monitoring record and replay.

  - Code cause / solution tips guide users to the root cause of trouble codes faster , saving $ diagnosis and repair time.

  - Warning lights information.

  - App featuring Dynomometer, horsepower, and torque.

  - Convenient CO2 emissions readouts.

  - Global Positioning Systems tracking of  speedometer use and activity with real-time functionality that can be uploaded to the internet.

  - Compatible with a wide range of tablets including, but not limited to, the IOS, Samsung, Microsoft.





  And for a hundred different uses .













  No need to wait for a Mechanic (when available) and pay an expensive fee.


  If you have a Scanner with you then you will not need to wait.

  You will able to diagnose your car yourself in no time.



 This scanner is Portable and do not take a lot of space.

  The perfect diagnostic scan tool to make sure your car is running at it's optimum.

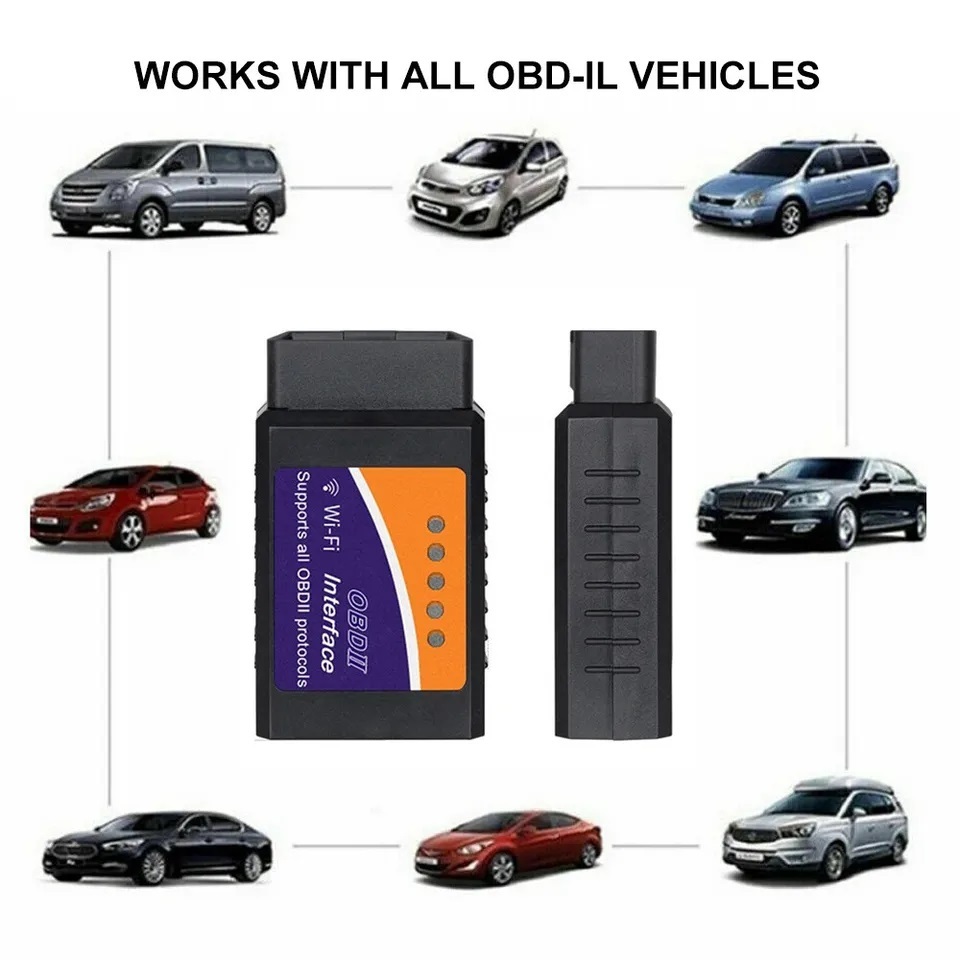

  An OBD2 code reader is a must have tool for technicians and DIYers who want to run multi system diagnosis on most OBD-II & CAN compatible cars sold worldwide.





Unlimited support provided!





   - Vehicle Speed

  - RPM

  - Fuel Consumption

  - Engine Coolant Temp

  - Fuel Pressure

  - Calculated Engine Load

  - Throttle Position

  - Intake Manifold Pressure

  - Air Intake Temp

  - Timing Advance

  - Mass Air Flow

  - Fuel Level

  - Barometric Pressure

  - EVAP System Vapour Pressure

  - Fuel Trim

   - Engine RPM

  - Fuel Trim

   - Fuel System Status

  - Vehicle Speed

  - Short Term Fuel Trim

  - Long Term Fuel Trim

  Recommended Apps:

From the Google® Play store are:



• Torque Lite (OBD2 & Car)
• Torque Pro (OBD2 & Car)
• OBD Auto Doctor
• In CarDoc Pro (Andoid)
• EOBD Facile
• Ford Pass
• My BMW
• Scan Master
• Dash Command (Ipad Optimized app)



















The product is compatible with the following protocols:



 ELM327 WIFI detects and interprets these protocols automatically. It also provides support for high speed communications and a low power sleep mode. There are plenty of compatible software packages available that offer useful features such as real-time engine parameters and Engine check light reading and clearing.



Note: Our scanner is suitable to all car brands, but not all car models. Before you make order, please check whether your car model has one of the following protocols.



• ISO 9141-2 (5 baud init, 10.4 kbaud)

• ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

• ISO 14230-4 KWP (fast init, 10.4 kbaud)

• ISO 15765-4 CAN (11 bit ID, 500 kbaud)

• ISO 15765-4 CAN (29 bit ID, 500 kbaud)

• ISO 15765-4 CAN (11 bit ID, 250 kbaud)

• ISO 15765-4 CAN (29 bit ID, 250 kbaud)

• SAE J1850 PWM (Found on many Ford vehicles)

• SAE J1850 VPW (Found on many GM vehicles)





Apple iOS Easy Setup:



1. Go to WiFi settings, search for the WiFi connection from the scanner and connect to it

2. Open your favorite application and connect. If necessary, set the IP to 192.168.0.10 and Port 35000 in settings







  Specifications:



• SSID: WiFiOBD
• IP: 192.168.0.10
• Subnet: 255.255.255.0
• Port: 35000
• Range: 50 FT (Line of sight)
• Antenna Type: Internal
• Operating voltage: 12V, internal protection from short circuits/over voltages
• Nominal idle current: 45mA
• Power Consumption: 0.75 Watts
• Wi-Fi Standard: 802.11a/b/g
• Operating Temperature: -15 to 100
• Dimensions: 2.75 x 1.25 x 1.2 inches
• Item Weight: 59.3g
• Package Weight: 124g
